WeldChrome ComplexHard

WeldChrome ComplexHard

Electrode for Severe Abrasion at High Temperature

WeldChrome ComplexHard is an electrode for severe abrasion at high temperatures. The weld deposits contain carbides in a complex structure and retain abrasion resistance up to 500°C. Dry the electrodes if necessary up to 300°C for 1 hour before use.

Applications:

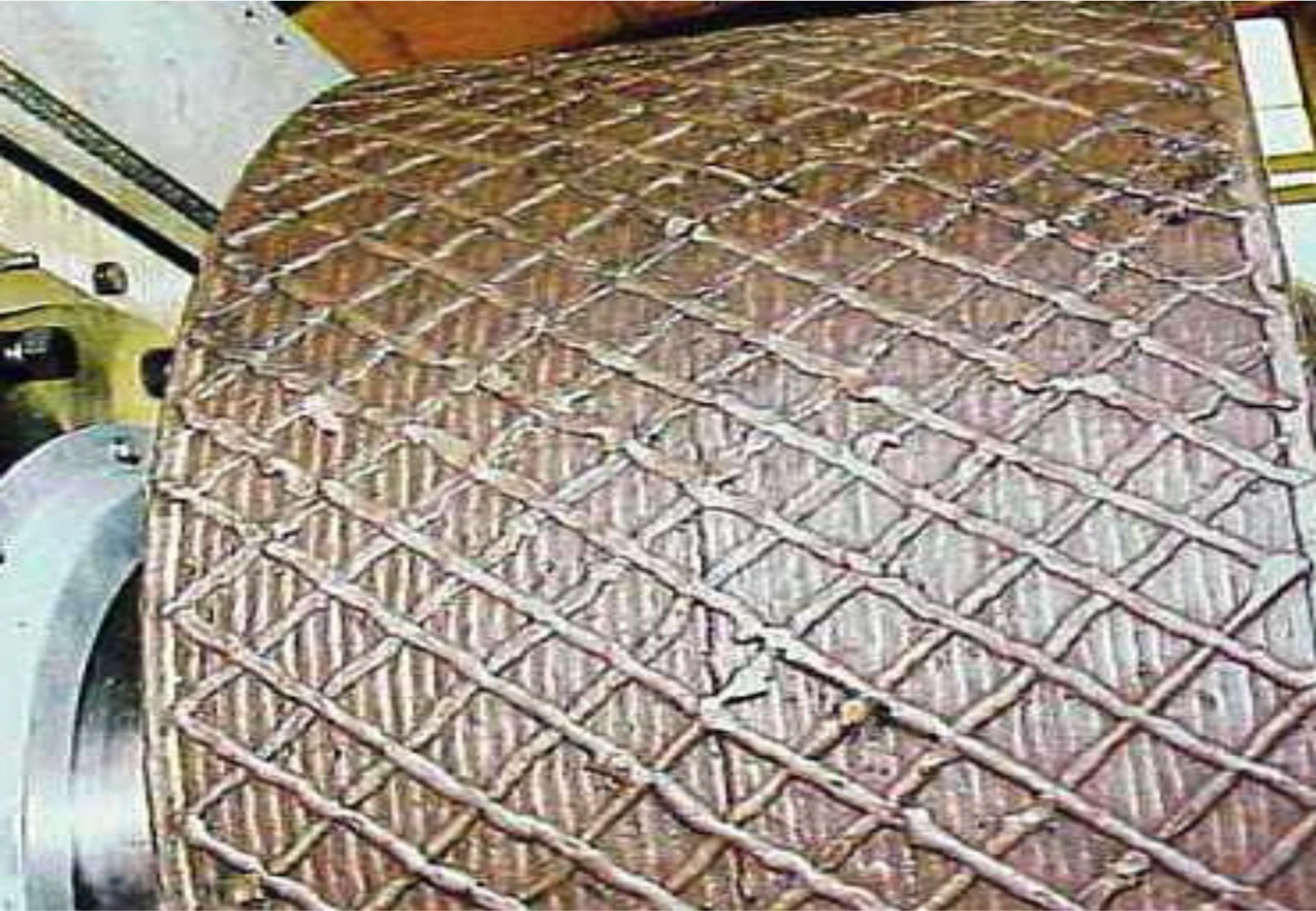

Blast furnace hoppers & throats, screw conveyors, and crushing rolls. Many applications in cement, ceramic, and mining industries.

Properties:
Hardness: 63-65 HRC in 2 layers

Current in Amps
2.50 x 350
3.15 x 350 110 – 140
4.00 x 350 140 – 190
5.00 x 350 190 – 240
